2023 - Transistor (BJT)
Last Update: 26.06.2025
Maturity  | |
|---|---|
 Basic |  |
 Scope |  |
 Flow | |
 Cycle | |
Center  NPN |
Periphery  PNP |

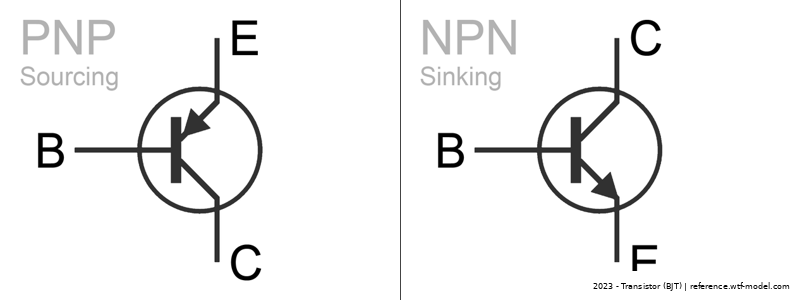

A Bipolar-Junction-Transistor (BJT) is a three-layer semiconductor device used for amplification and switching. NPN and PNP are two types of BJT, differing in the direction of current flow and doping of the layers.
WARNING: This entry is marked as experimental/in development.
